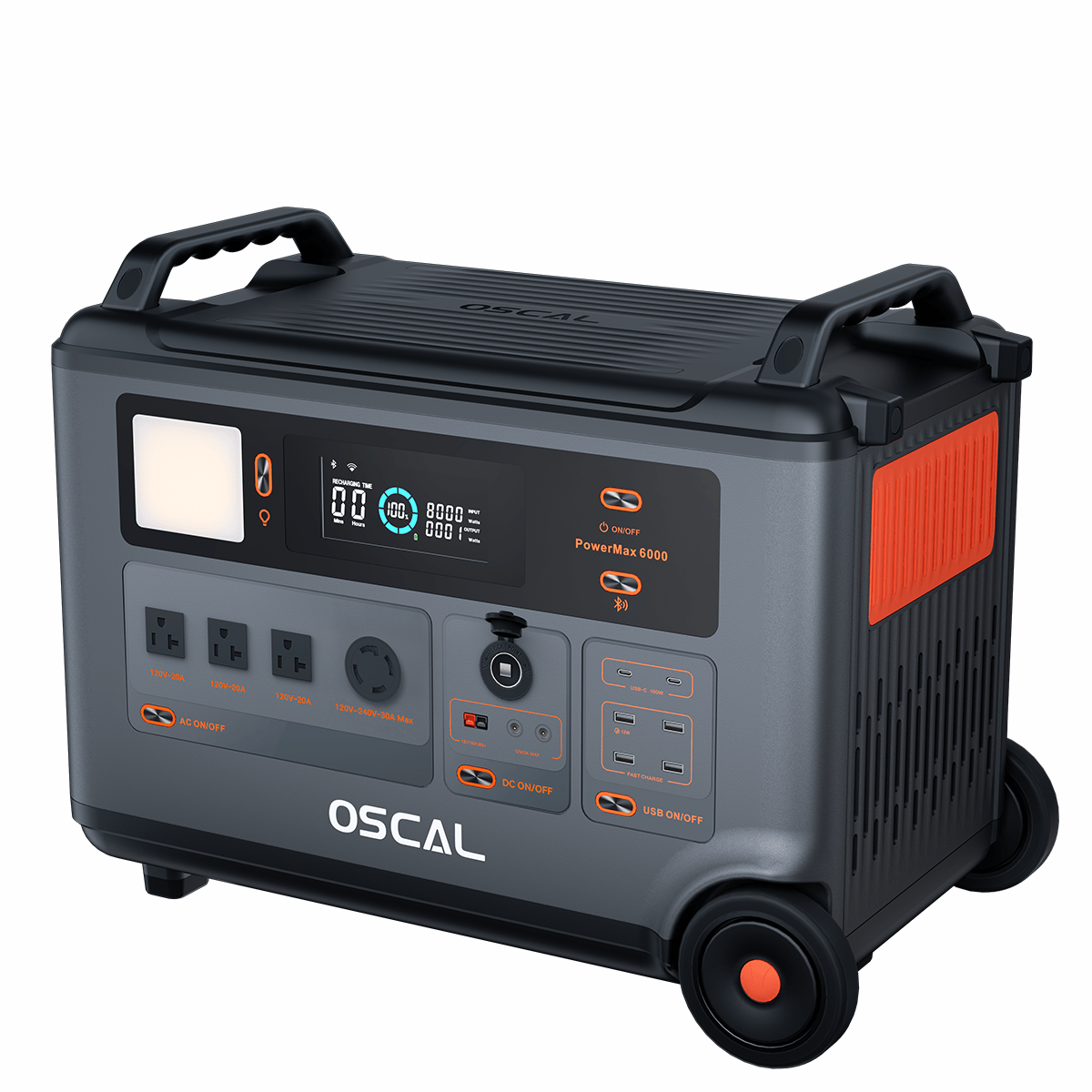

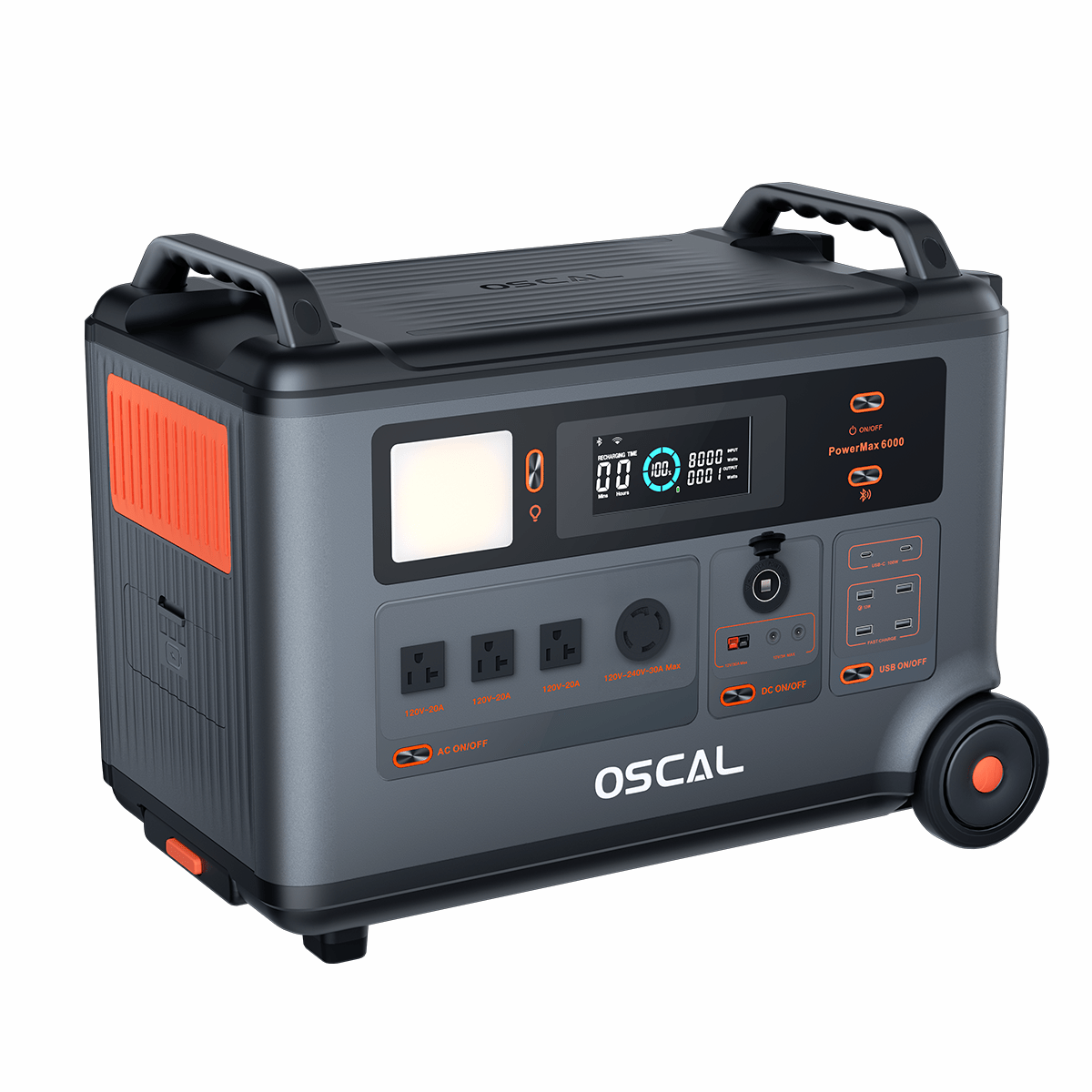

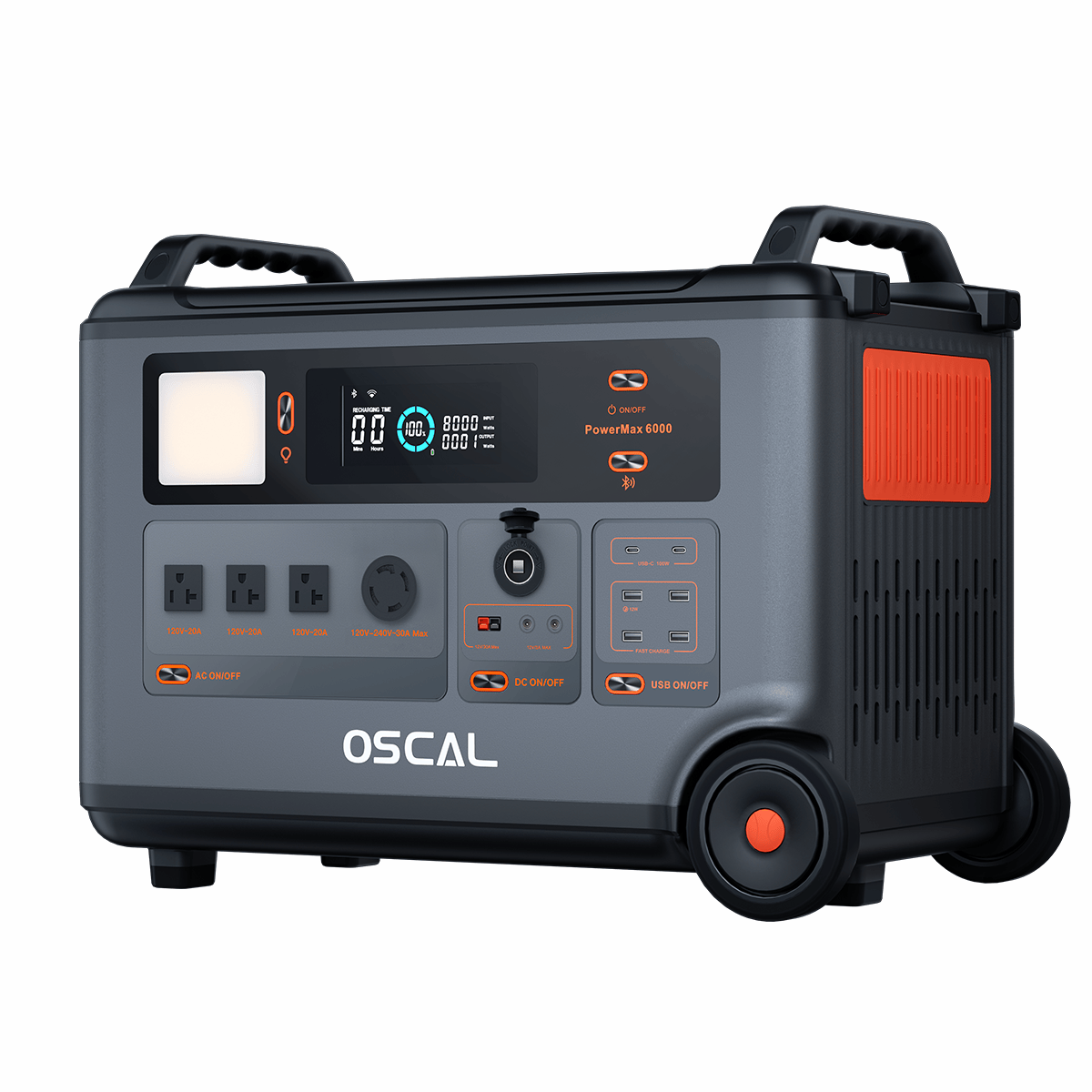

The Oscal PowerMax 6000 delivers 6,000W of pure sine wave power with true 120V/240V split-phase capability to run high-draw appliances such as well pumps, central air conditioning, and heavy-duty tools without requiring an electrician. Equipped with a robust 3,600Wh LiFePO4 battery rated for over 3,500 cycles to 80% capacity, it provides reliable home backup and works cleanly indoors with zero emissions.
Expandable up to 57.6kWh with additional BP3600 battery units, this power station adapts to multi-day emergency outages and demanding off-grid setups. It supports rapid AC recharging up to 2,200W, accepts up to 1,500W of solar input, and features integrated WiFi and Bluetooth app control for complete real-time monitoring.
Key Features
Brand
Oscal
Model
PowerMax 6000
Product Type
Portable Power Station
Rated AC Output
6,000W total, pure sine wave
AC Output Configuration
120V / 240V split phase, 3 x 20A + 1 x 30A, 50Hz / 60Hz
Battery Capacity
3,600Wh
Battery Type
LiFePO4 (LFP)
Battery Life Cycles
3,500+ cycles to 80% capacity
Expandable Capacity
Up to 15 x BP3600 expansion batteries (57.6kWh total)
Charging Temperature
32°F to 113°F
Discharging Temperature
14°F to 113°F
Optimal Operating Temperature
68°F to 86°F
App Control
Yes, WiFi and Bluetooth

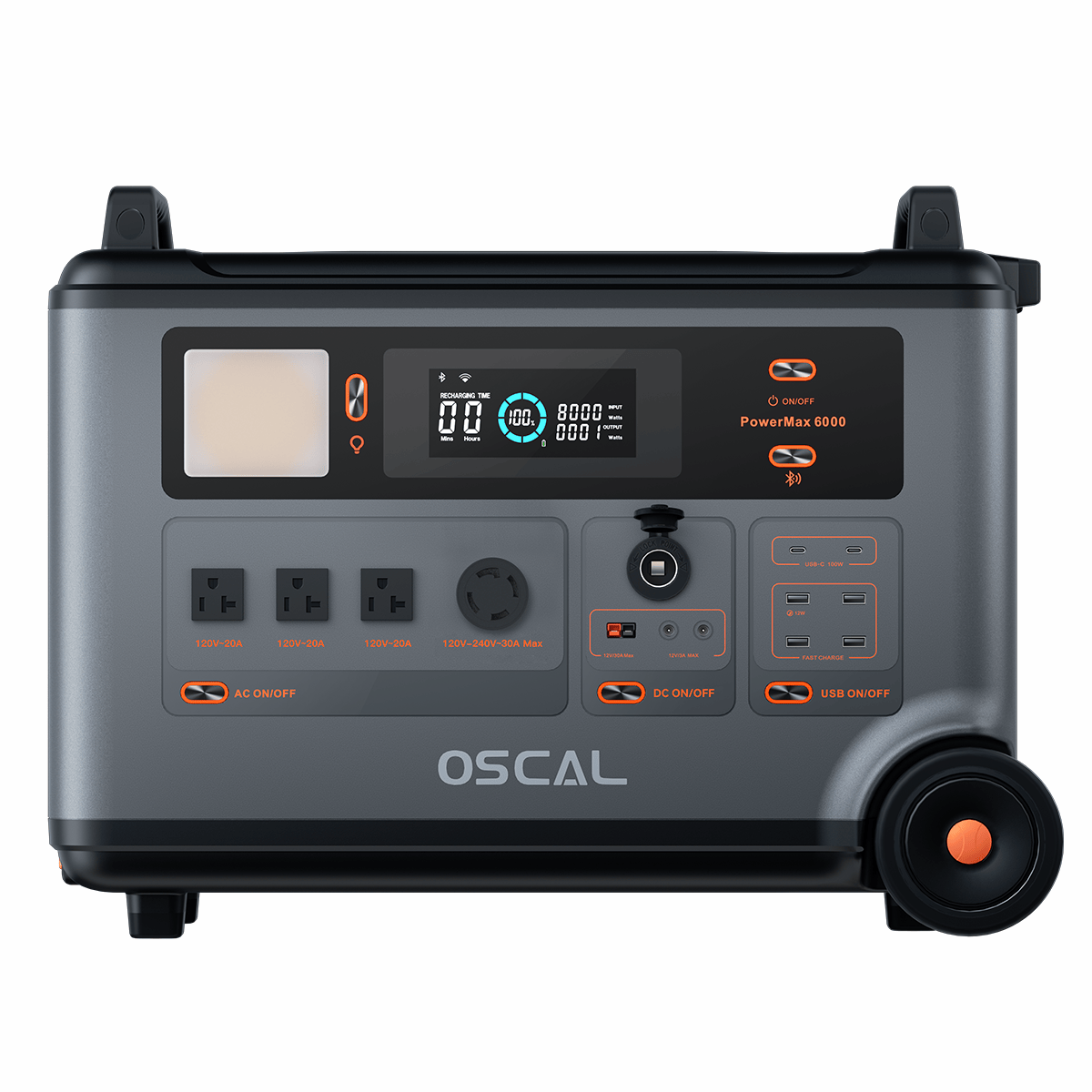

AC Outlets
3 x 20A, 1 x 30A (120V / 240V, 6,000W total)
USB Ports
4 x USB-A (1 x 12W, 3 x 18W), 2 x USB-C (100W each)
DC Ports
2 x DC5521 (36W each), 1 x Car Cigarette Lighter (120W), 1 x Anderson Connector (378W)
Solar Input
12 to 60V, 25A max (1,500W)
AC Input
2,200W max (240V outlet) / 1,800W (standard 120V outlet)

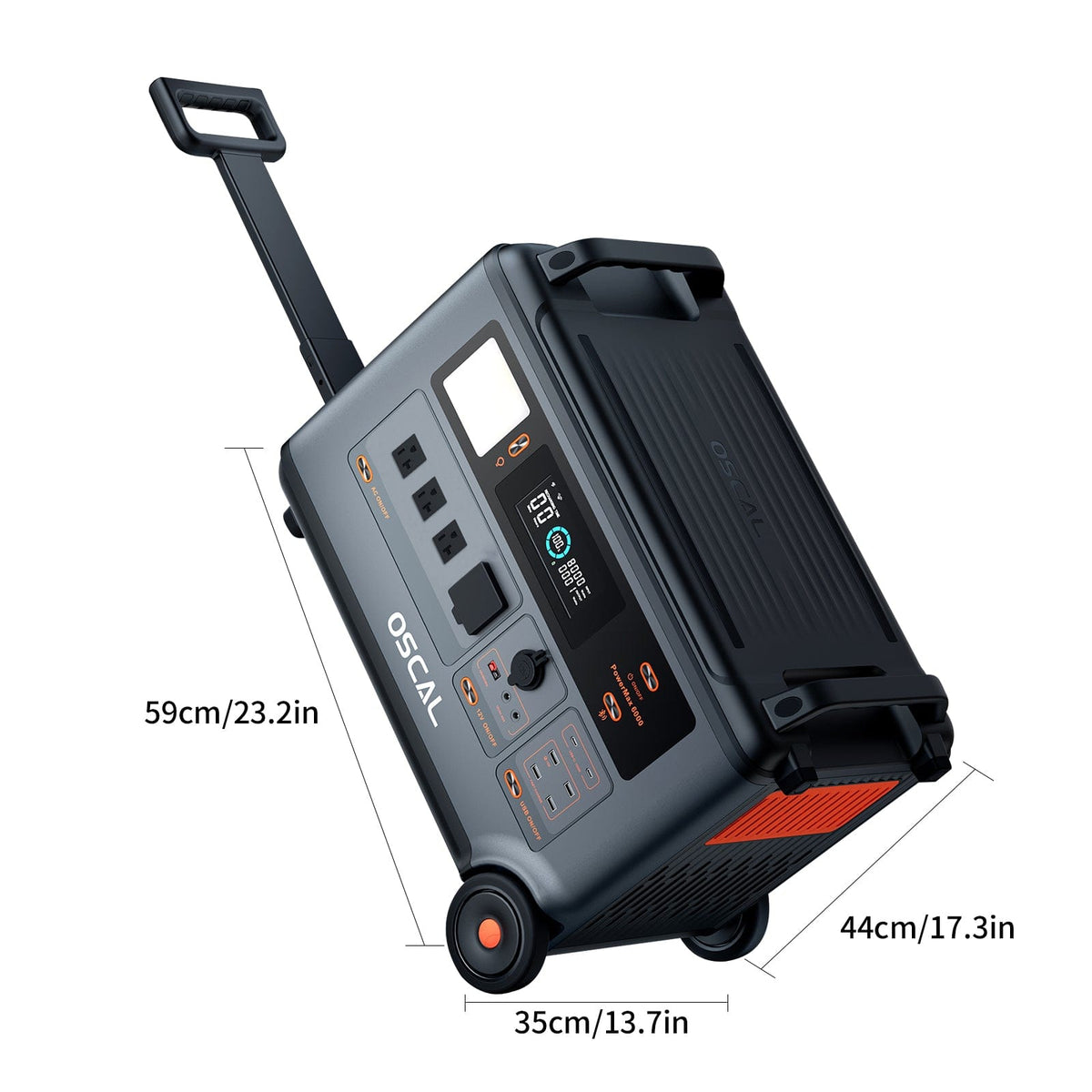

Dimensions
23.2 in x 13.8 in x 17.5 in
Weight
101.7 lbs
Highlights

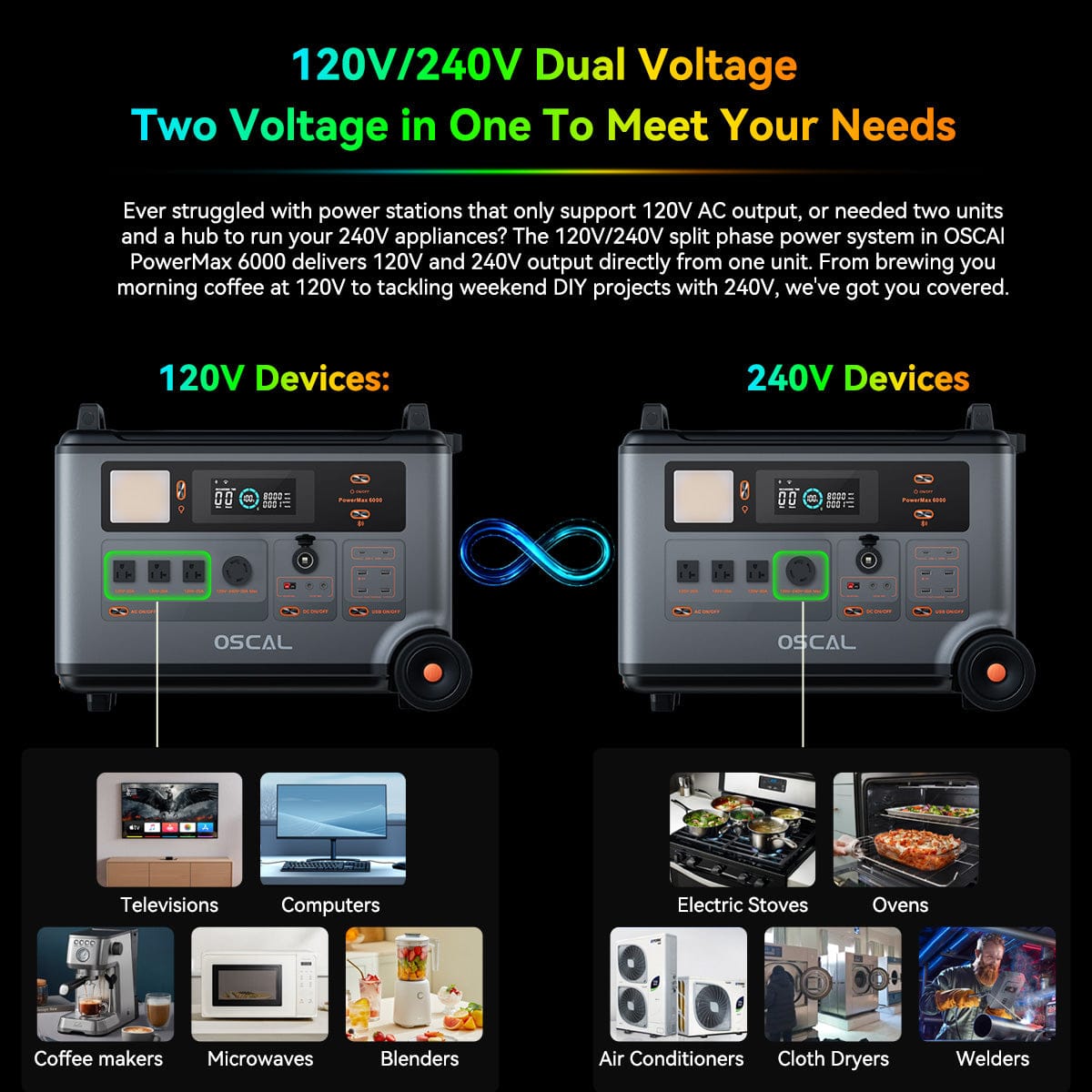

True 120/240V split phase, 6,000W - Three 20A outlets and one 30A, pure sine wave. The 240V leg allows operation of a well pump, a compressor or a 240V tool without a transformer.
3,600Wh LiFePO4, rated 3,500 cycles to 80% - Lithium iron phosphate chemistry. Rated for approximately 10 years at one cycle per day.

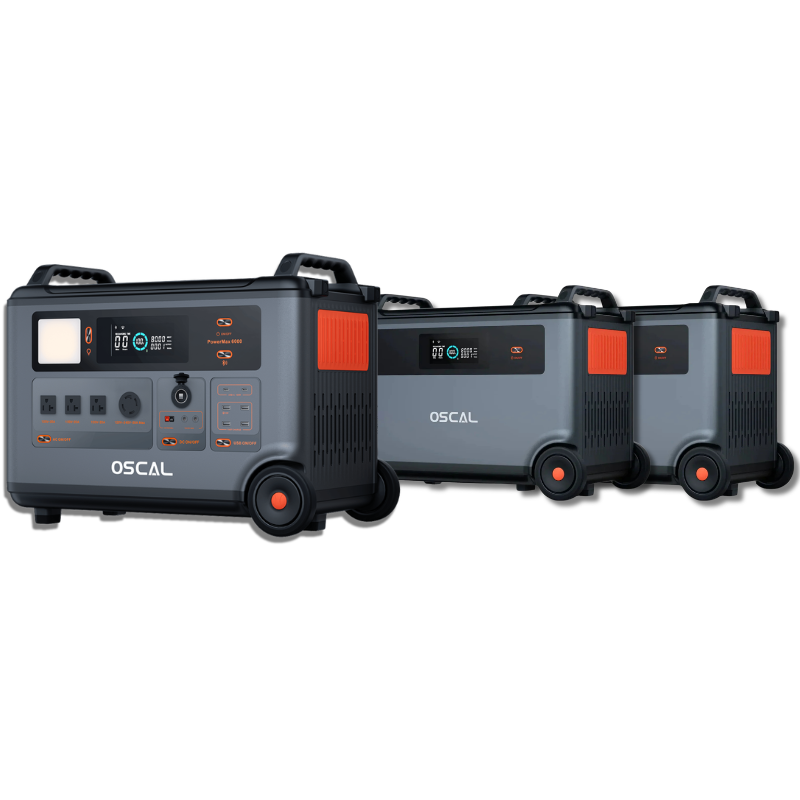

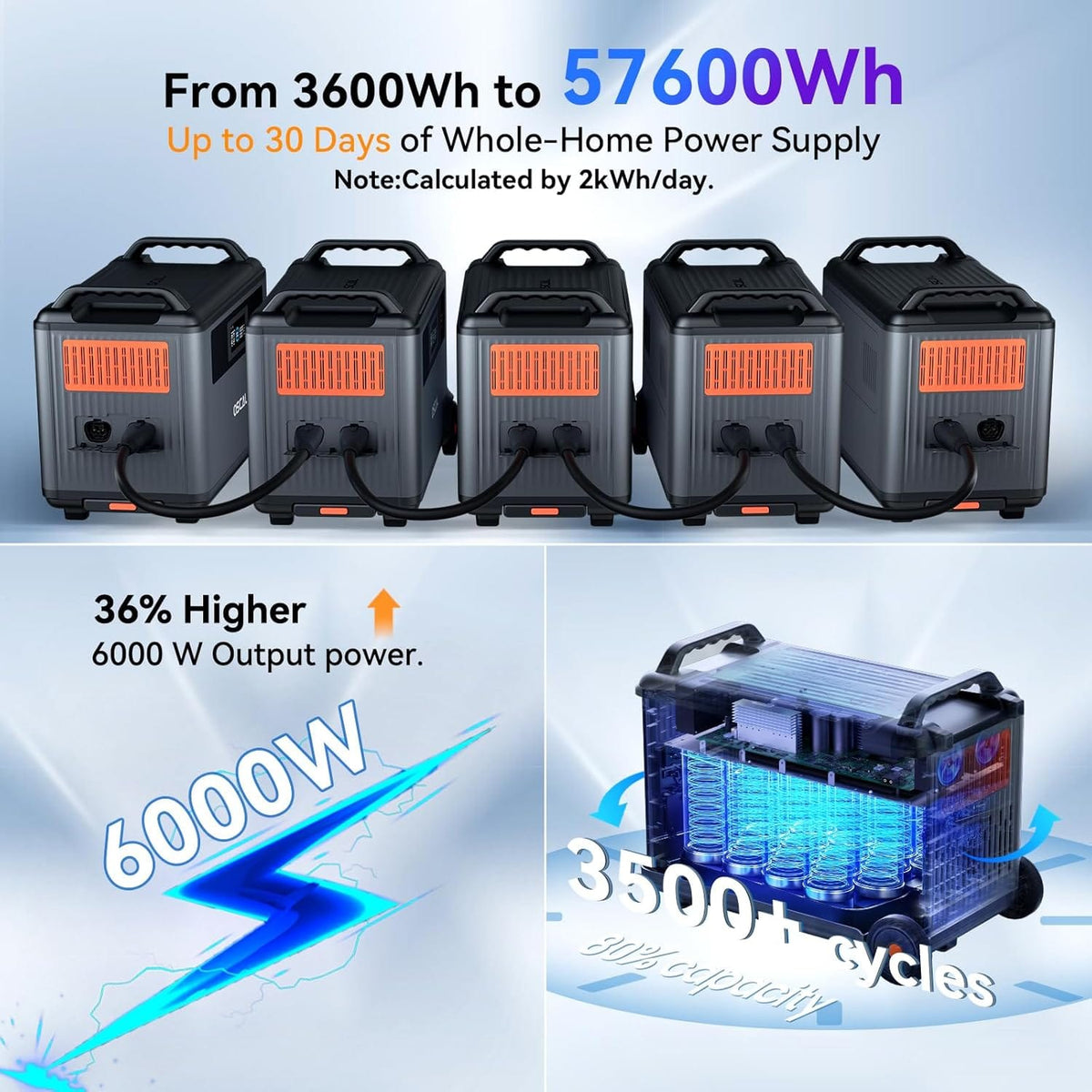

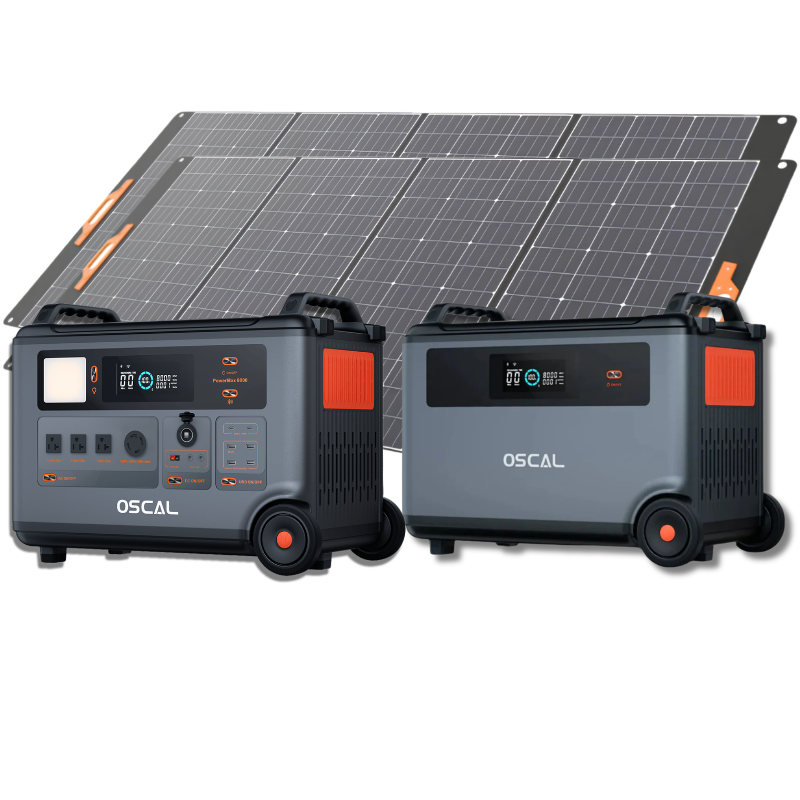

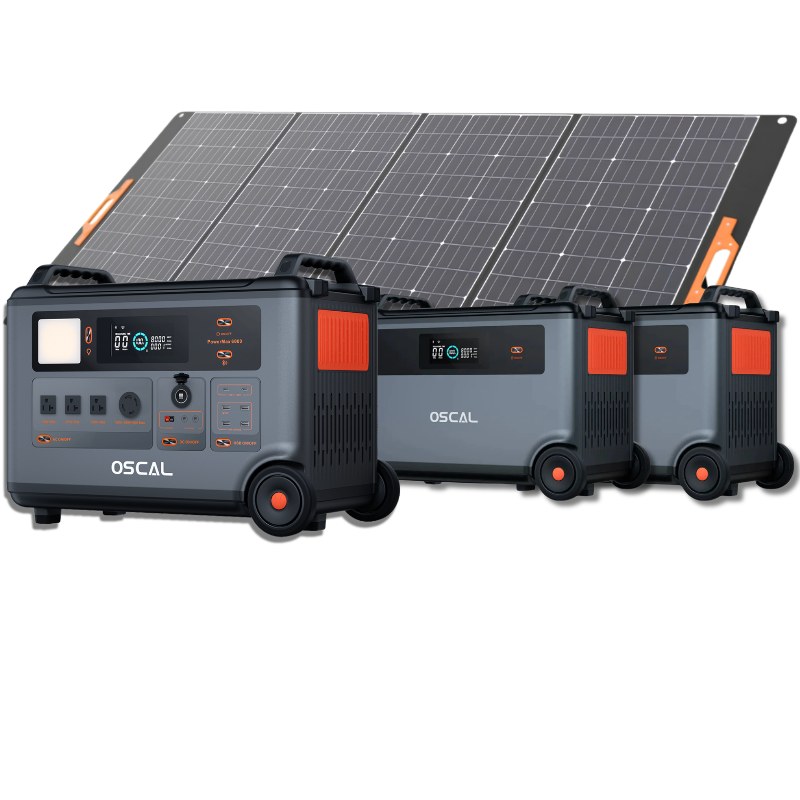

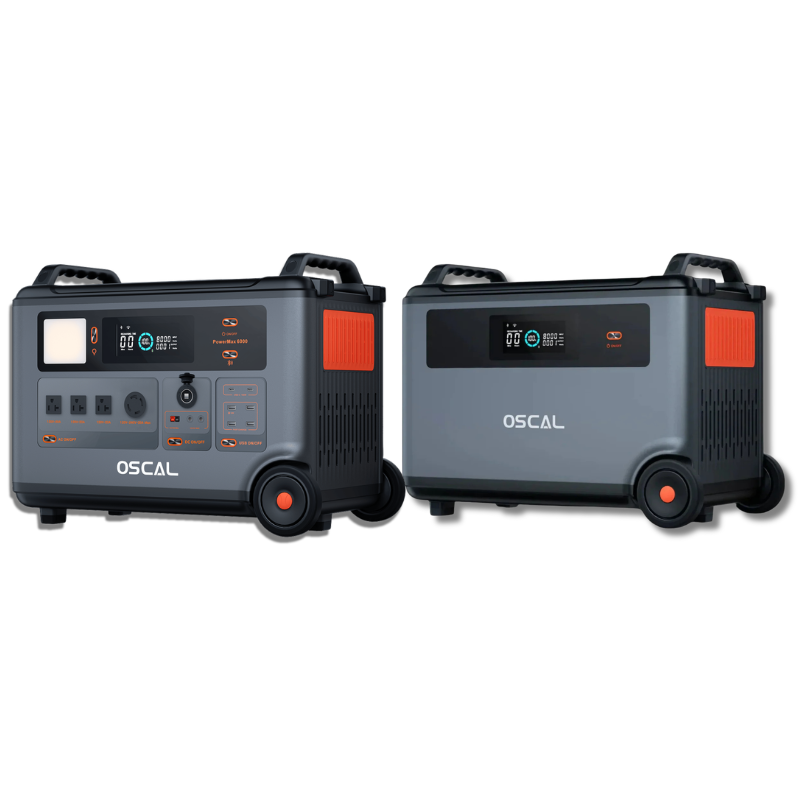

Expandable to 57.6kWh - Supports up to fifteen BP3600 batteries alongside the built-in 3,600Wh capacity.

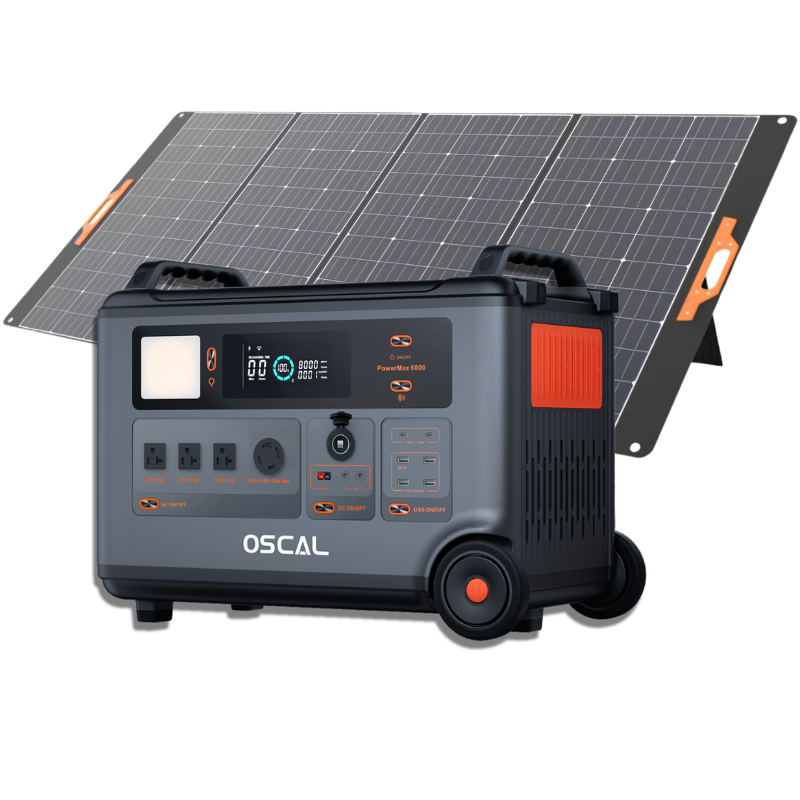

Recharges in approximately 1.96 hours at the full 2,200W AC input. Solar, car and generator charging are supported, with simultaneous AC and solar input capability.
Indoor operation - Produces no fumes or carbon monoxide, suitable for indoor placement.

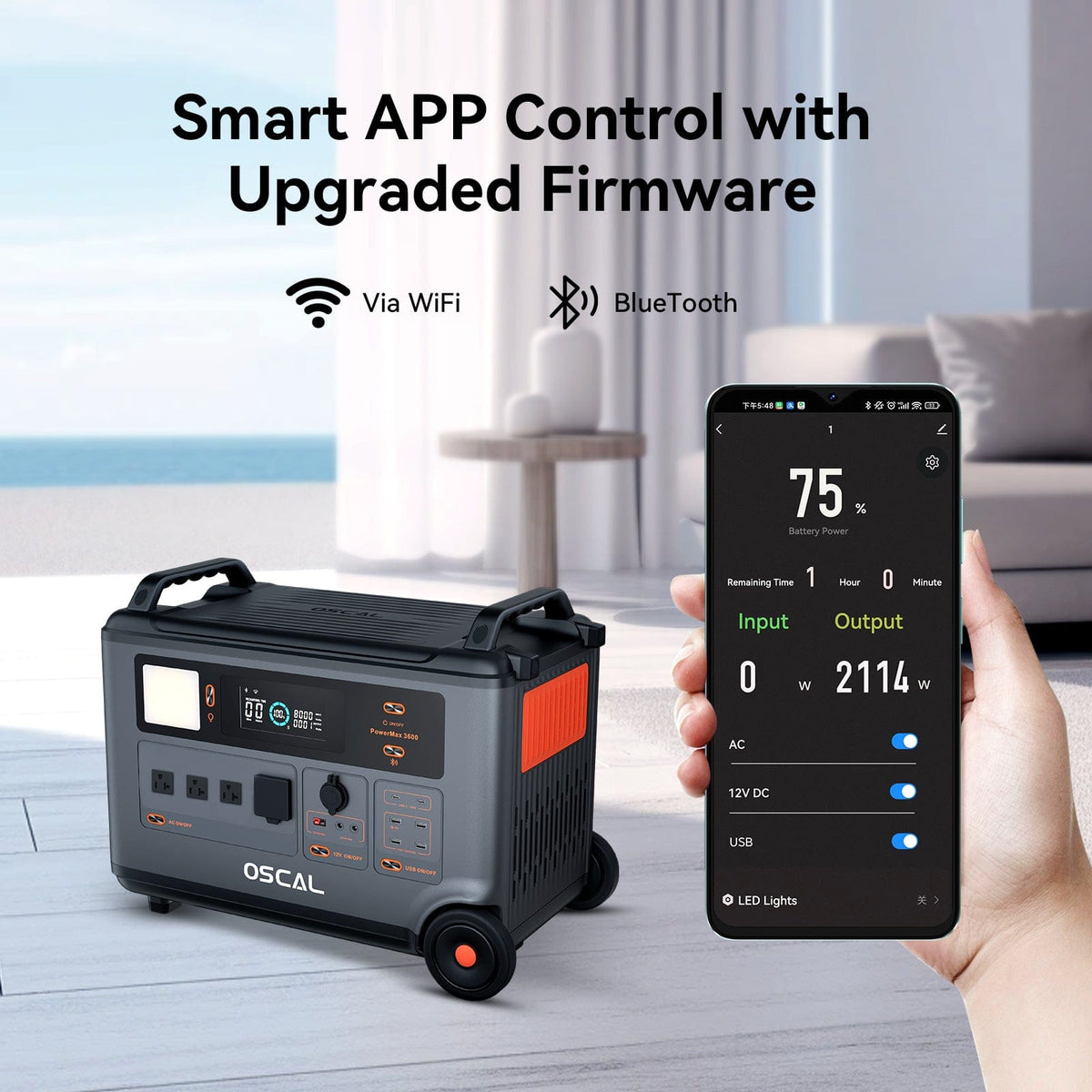

App monitoring over WiFi and Bluetooth - Provides live draw, state of charge and settings management via mobile device.
Eight-layer BMS and a 4-year manufacturer's warranty - Includes protection against overcharge, over-discharge, short circuit, over-voltage and temperature excursion.
Materials & care
To protect the LiFePO4 battery cells, ensure the unit is stored and charged in environments above 32°F (0°C). Keep ports clean and dry, and operate within the recommended temperature range of 68°F to 86°F for optimal lifespan.
Compatibility

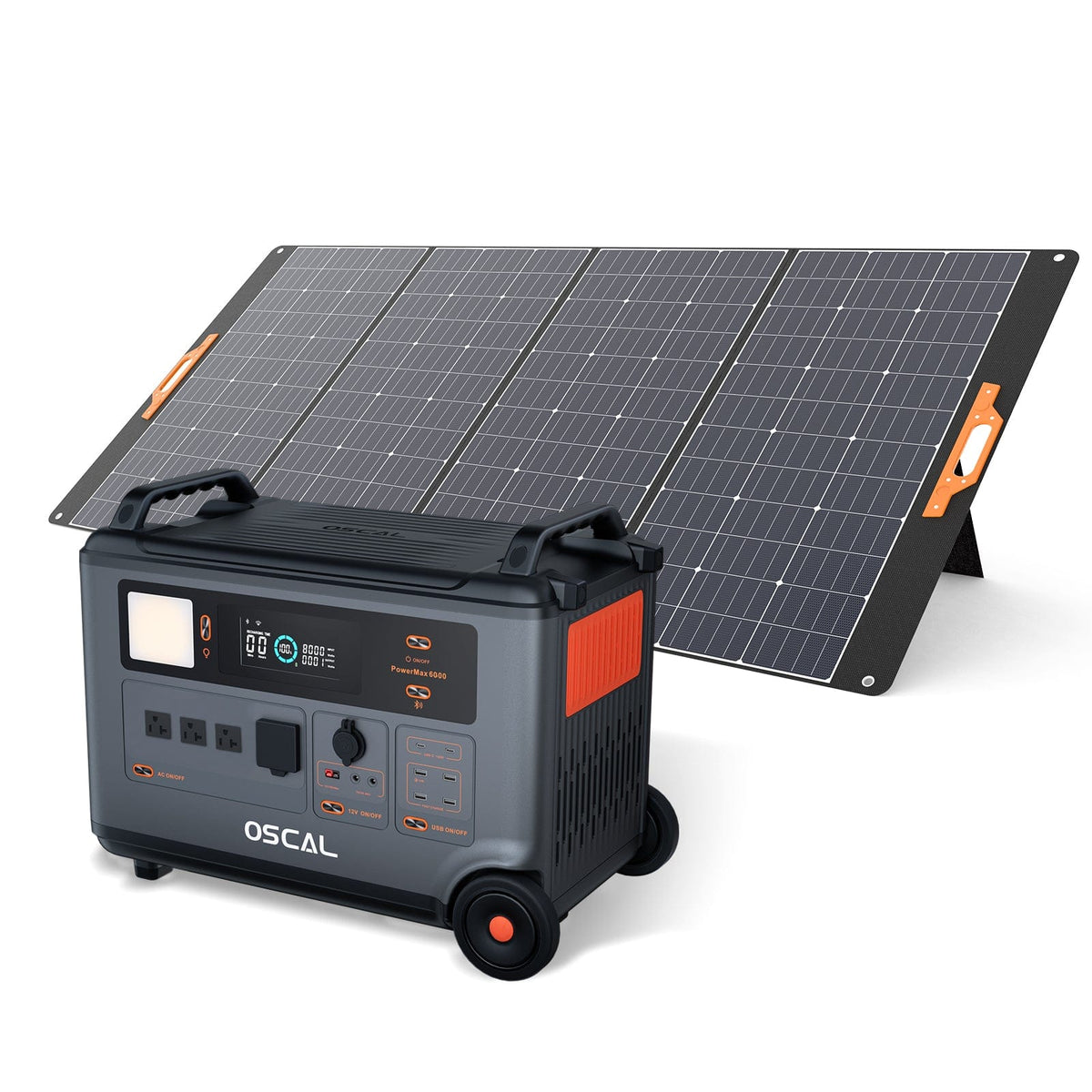

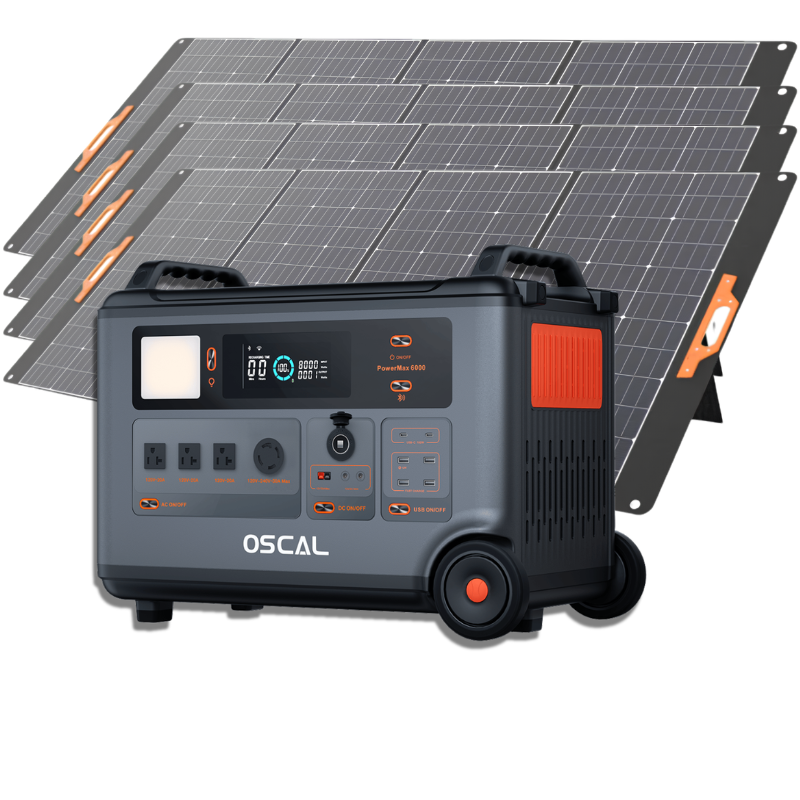

Compatible with Oscal BP3600 expansion batteries (up to 15 units) and standard solar arrays operating between 12V to 60V up to 25A (1,500W max input).
Warranty
Component
Coverage
PowerMax 6000 power station
4 years limited
BP3600 expansion battery
4 years limited
Solar panels
Per manufacturer
What's included

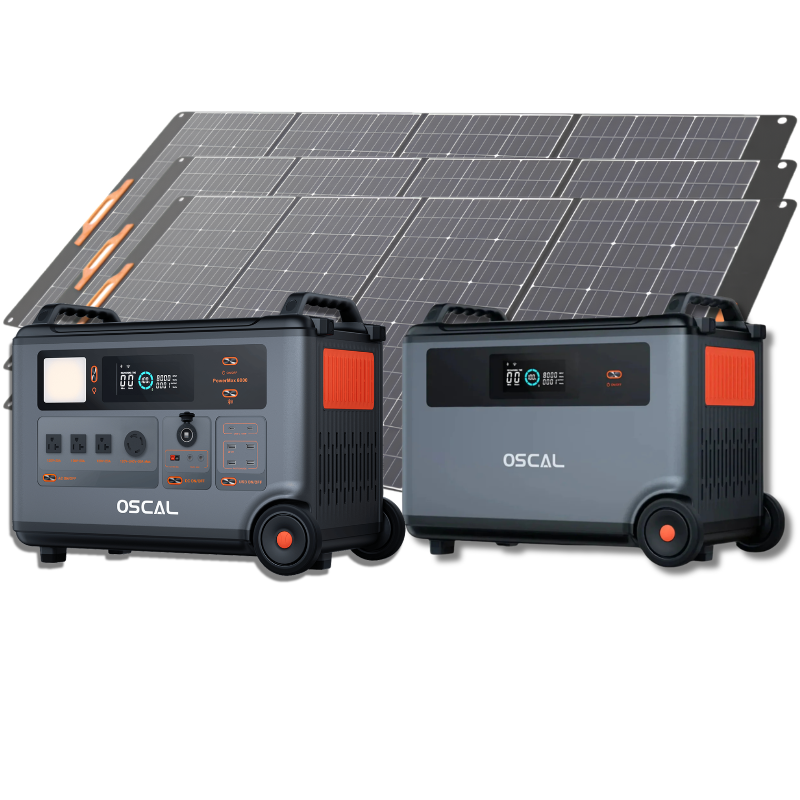

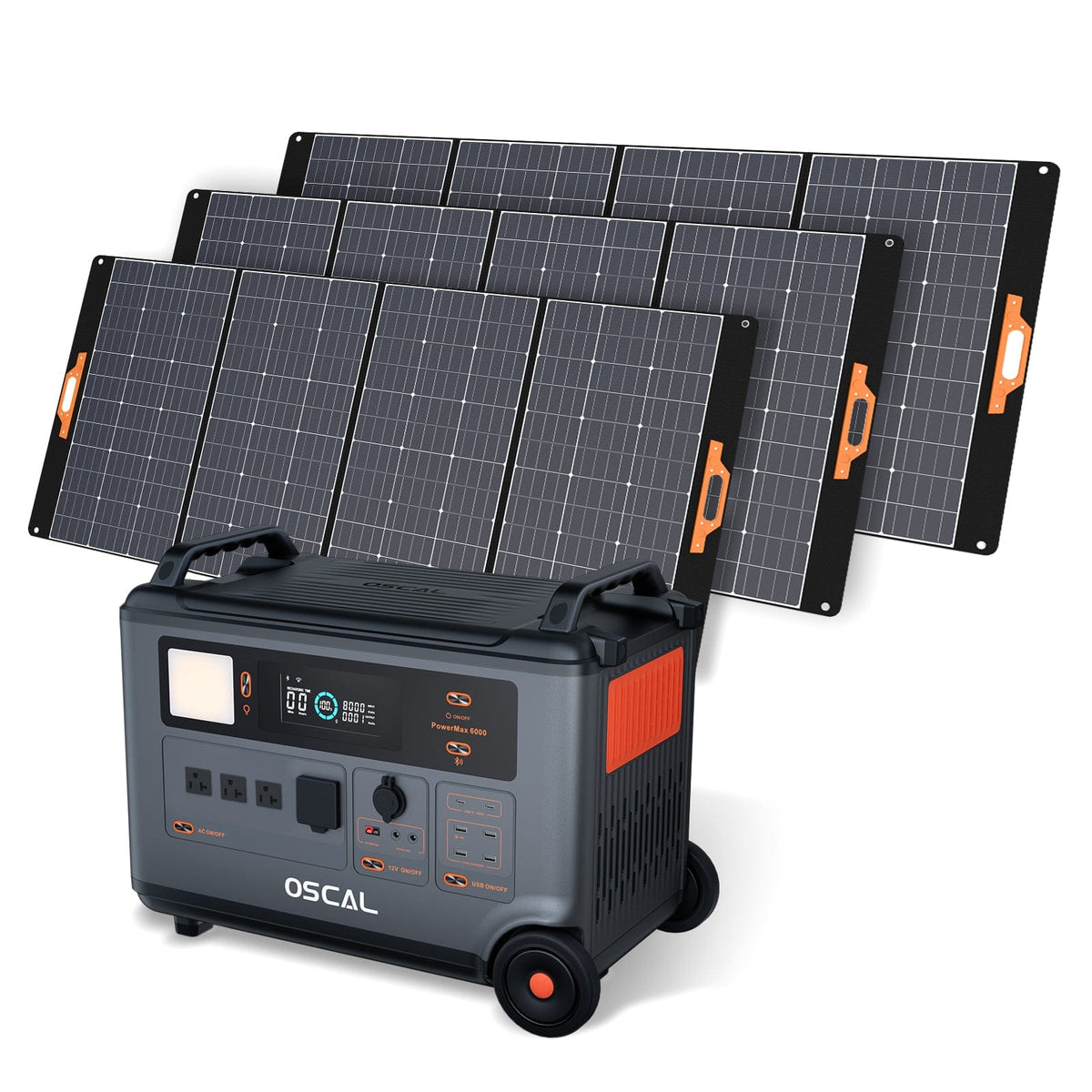

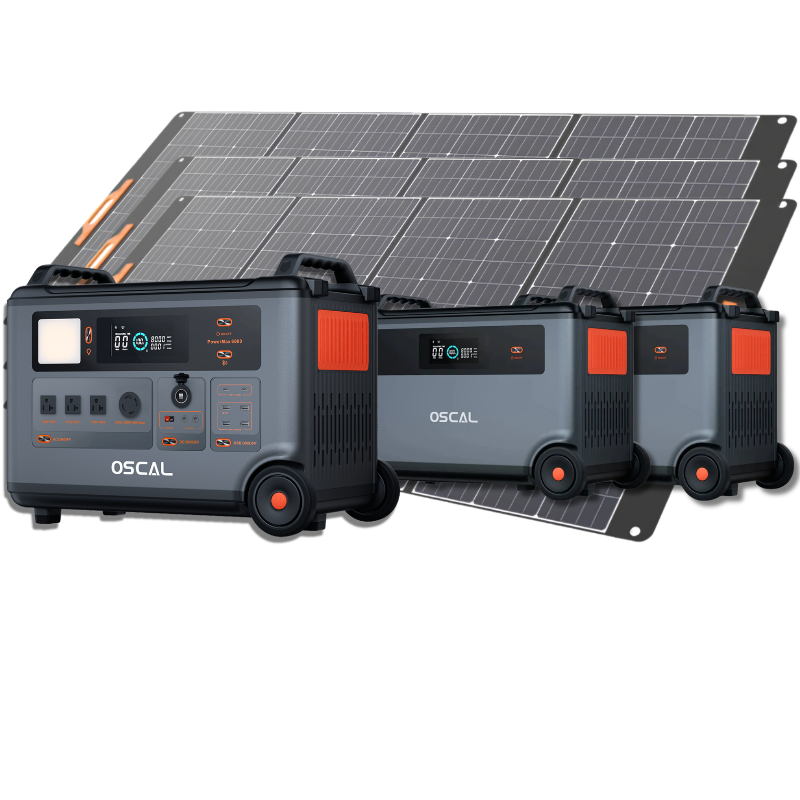

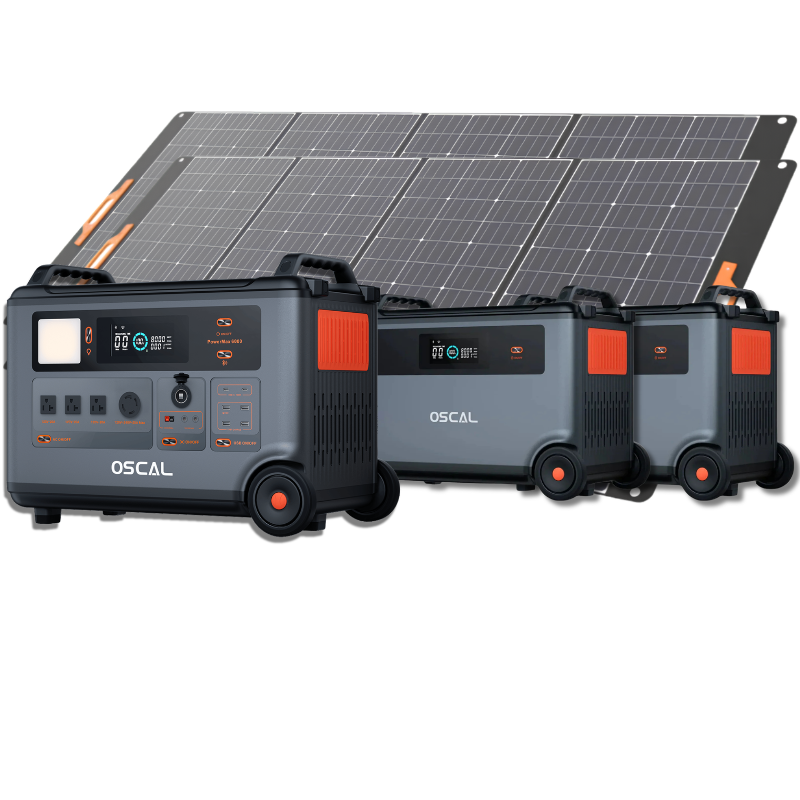

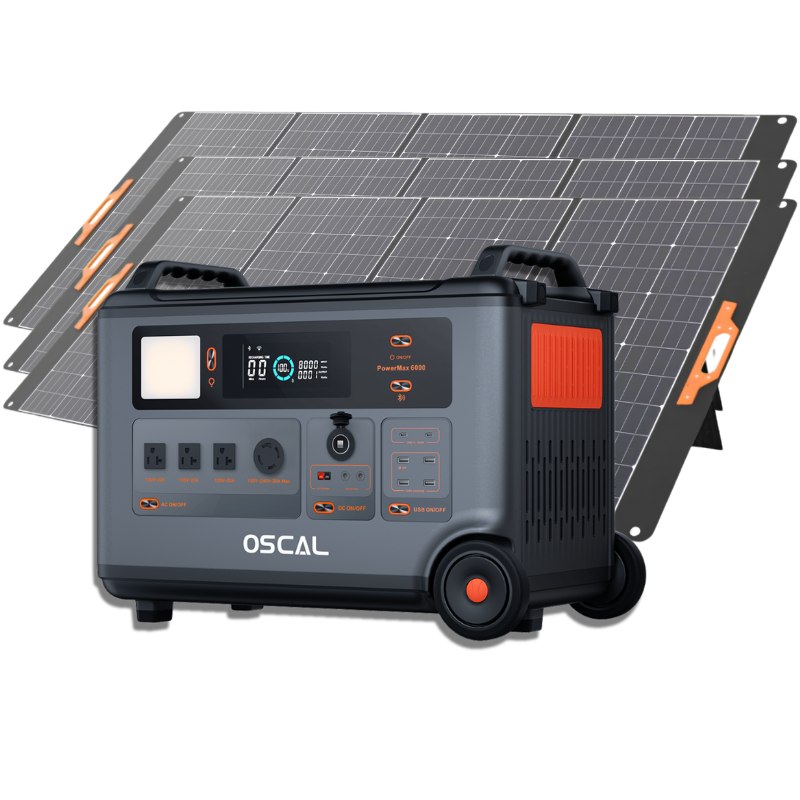

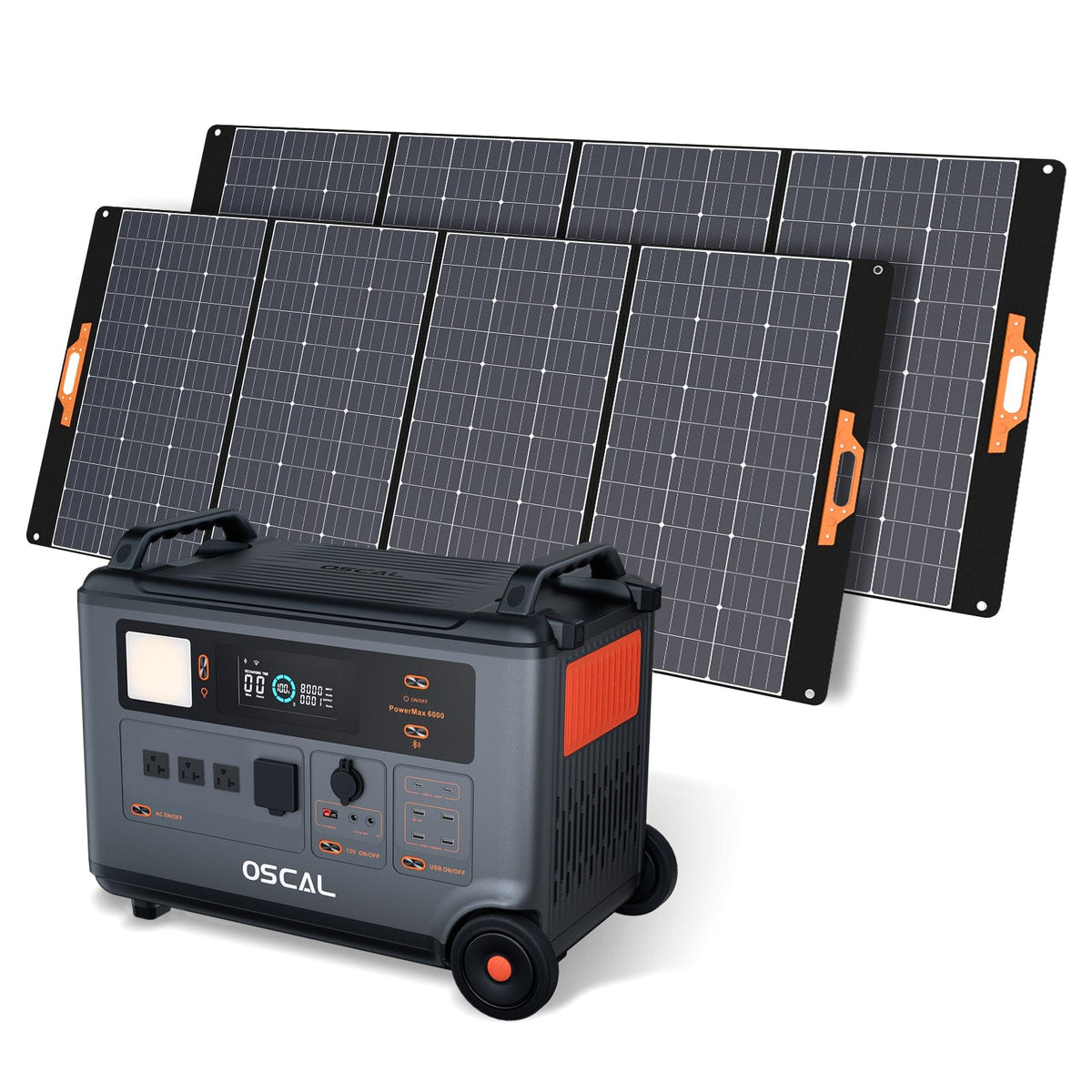

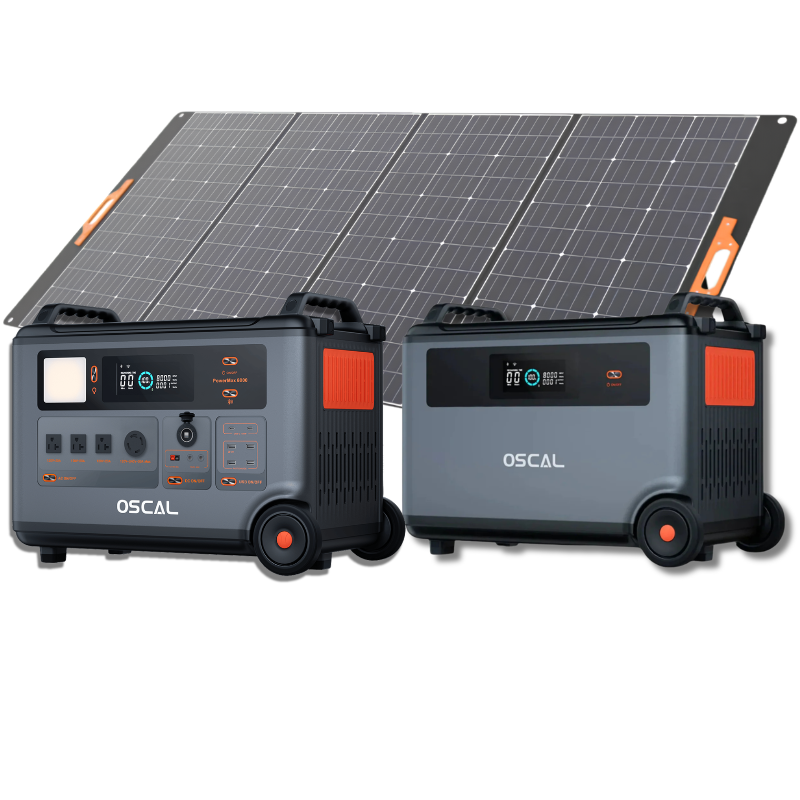

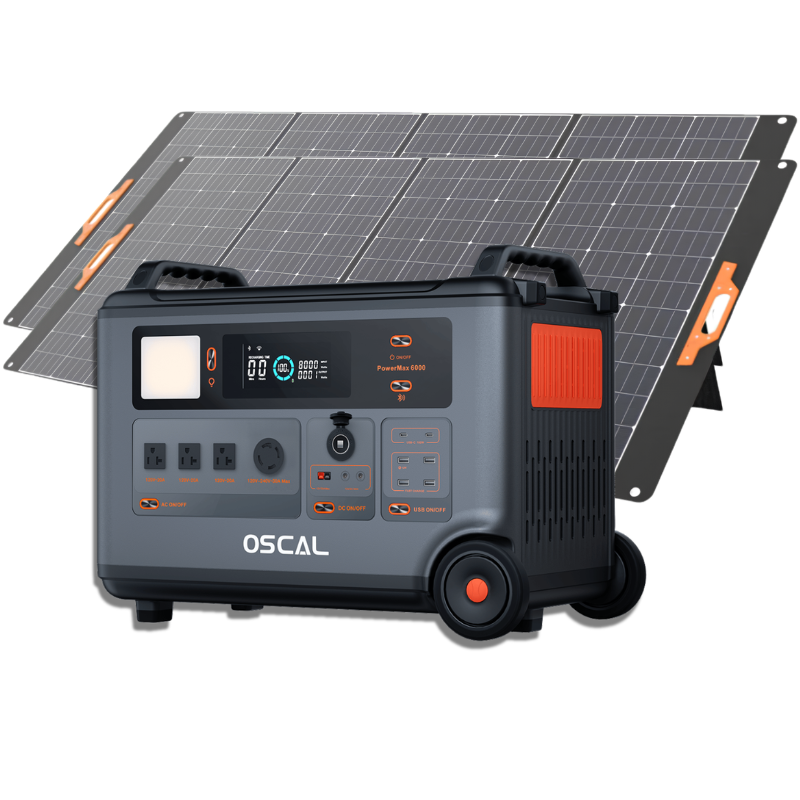

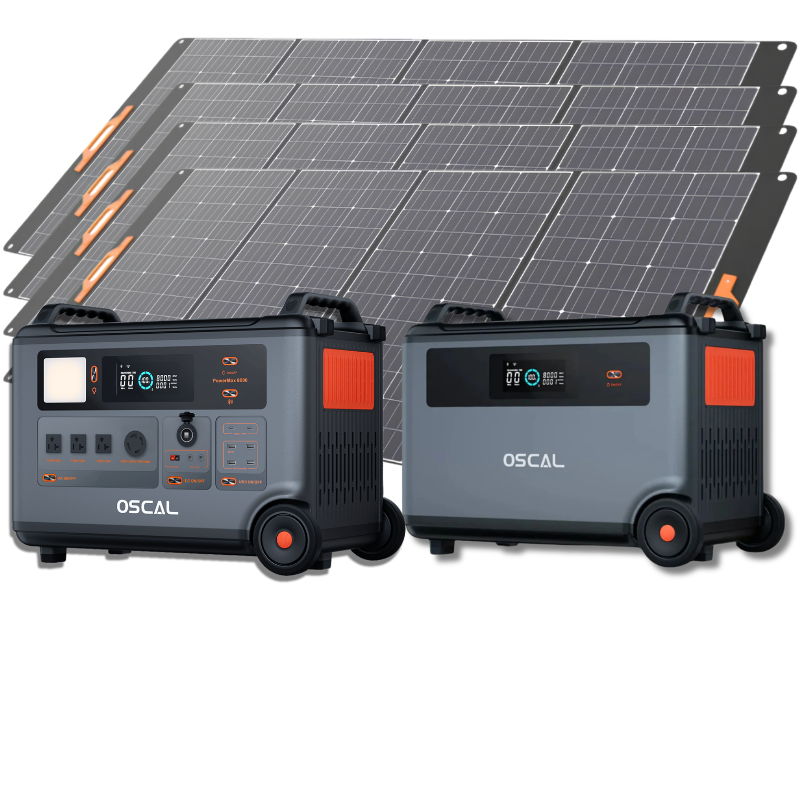

Every configuration includes the unit and all three charging cables. Batteries and panels follow the selected configuration.
Yes, it features true 120V/240V split-phase power with up to 6,000W output, allowing it to run 240V equipment like well pumps and heavy tools without an external transformer.
How long does it take to fully recharge?
It recharges in approximately 1.96 hours via a 2,200W 240V AC outlet, about 2.5 hours on a standard 1,800W 120V AC outlet, or roughly 3 hours under strong sunlight with 1,500W of solar input.
Can this unit be expanded for more capacity?
Yes, it can be expanded with up to 15 BP3600 extra battery units (3,600Wh each) to achieve a total maximum capacity of 57.6kWh.
What is the operating temperature range for charging and discharging?
The battery discharges between 14°F and 113°F and charges between 32°F and 113°F, with an optimal operating temperature range between 68°F and 86°F.
