Anker SOLIX F3800 Portable Power Station

The Anker SOLIX F3800 Portable Power Station provides robust, high-capacity energy for home backup, outdoor living, RV trips, and EV charging. Engineered with long-lasting EV-class LFP batteries and durable components, it delivers a massive 6,000W AC output with dual 120V/240V capabilities to easily power heavy-duty appliances such as dryers and electric vehicles.

Featuring an integrated 3,840Wh base capacity, the system expands up to 26.9kWh with additional battery packs to secure multi-day household power during outages. Seamless connectivity via Wi-Fi and Bluetooth allows intuitive power management directly through the Anker app, ensuring reliable performance whenever off-grid energy is required.

Key Features

Brand	Anker
Model Name	Anker SOLIX F3800
Model Number	A1790
Running Wattage	6000 W
Starting Wattage	10200 W
Capacity	3840 Wh
Battery Cell Composition	LFP (Lithium Iron Phosphate)
Voltage	120V / 240V
Current Rating	25 A
Frequency	60 Hz
Item Weight	132.3 lb
Dimensions	34 x 34 x 34 in
Power Source	Battery Powered
Connectivity	Wi-Fi, Bluetooth

Highlights

𝗘𝘅𝘁𝗲𝗻𝗱𝗲𝗱 𝗕𝗮𝗰𝗸𝘂𝗽 𝗣𝗼𝘄𝗲𝗿: Add a Smart Generator 5500 for Auto Start-Stop, Hands-Free Runtime

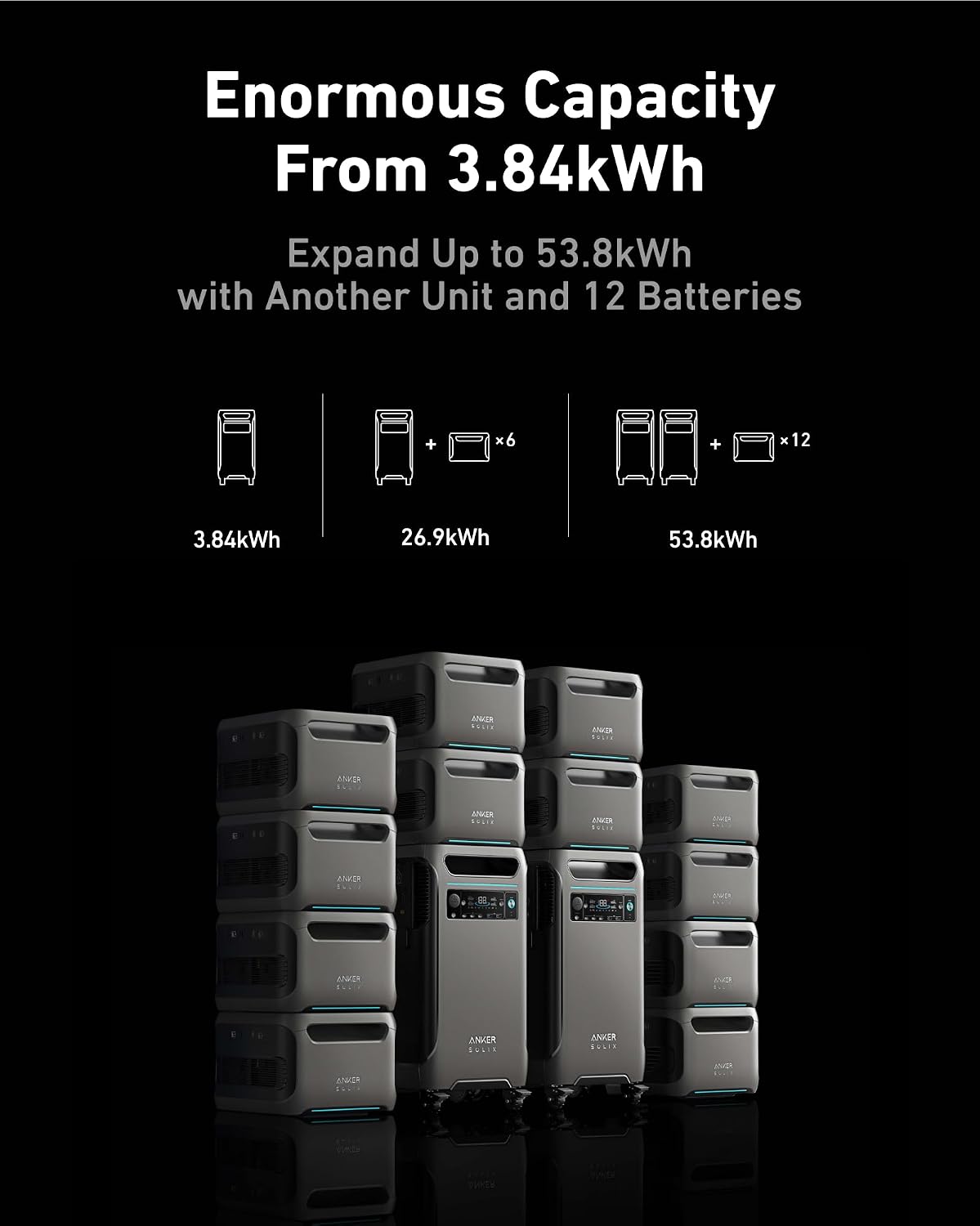

𝗘𝗻𝗹𝗮𝗿𝗴𝗲𝗱 𝗖𝗮𝗽𝗮𝗰𝗶𝘁𝘆 𝗙𝗿𝗼𝗺 𝟯.𝟴𝟰𝗸𝗪𝗵: The SOLIX F3800 has 3.84kWh to power household needs for one day. Expand capacity up to 26.9kWh by adding up to 6 battery packs. For extreme situations, add another SOLIX F3800 and 12 battery packs for up to two weeks of power.

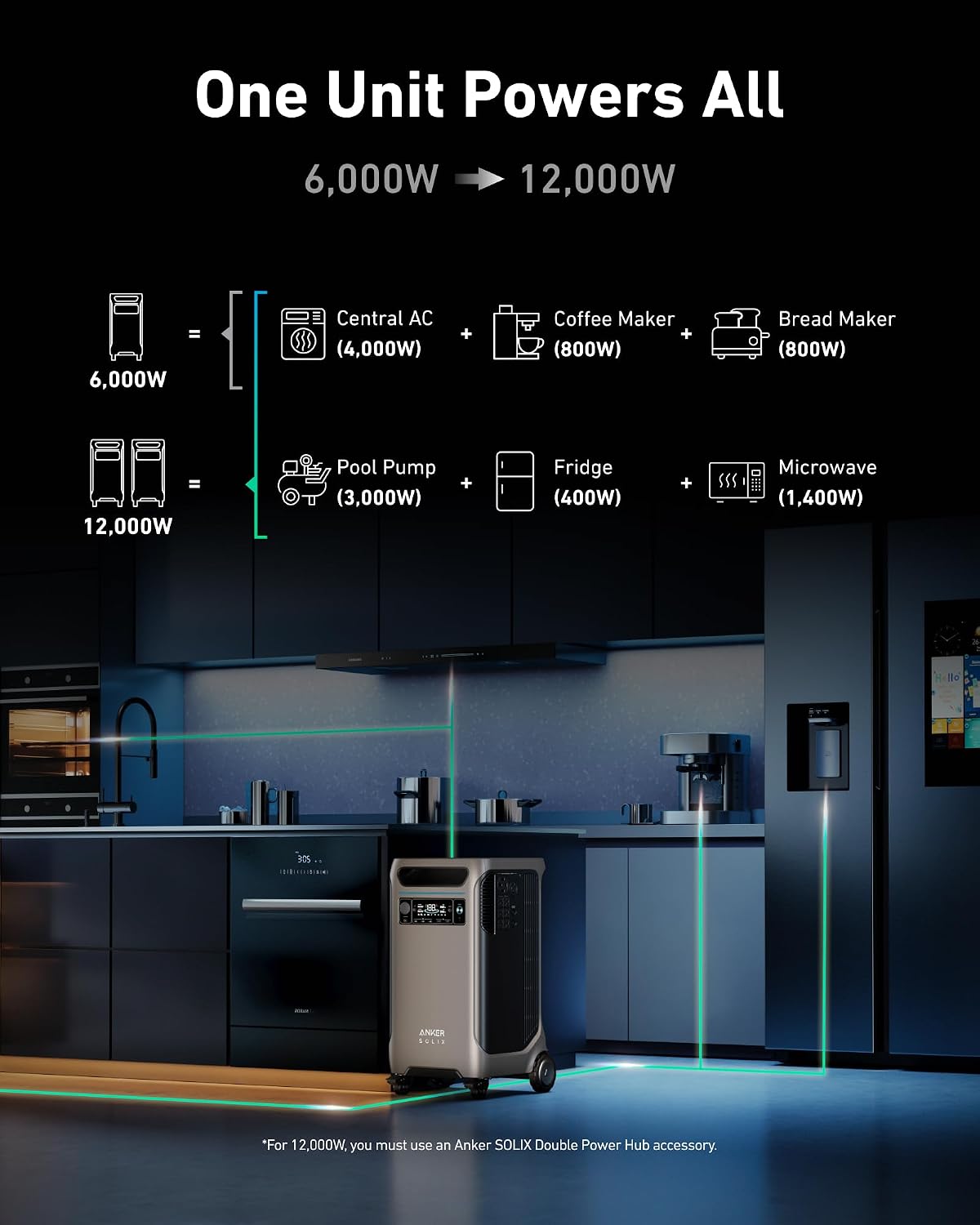

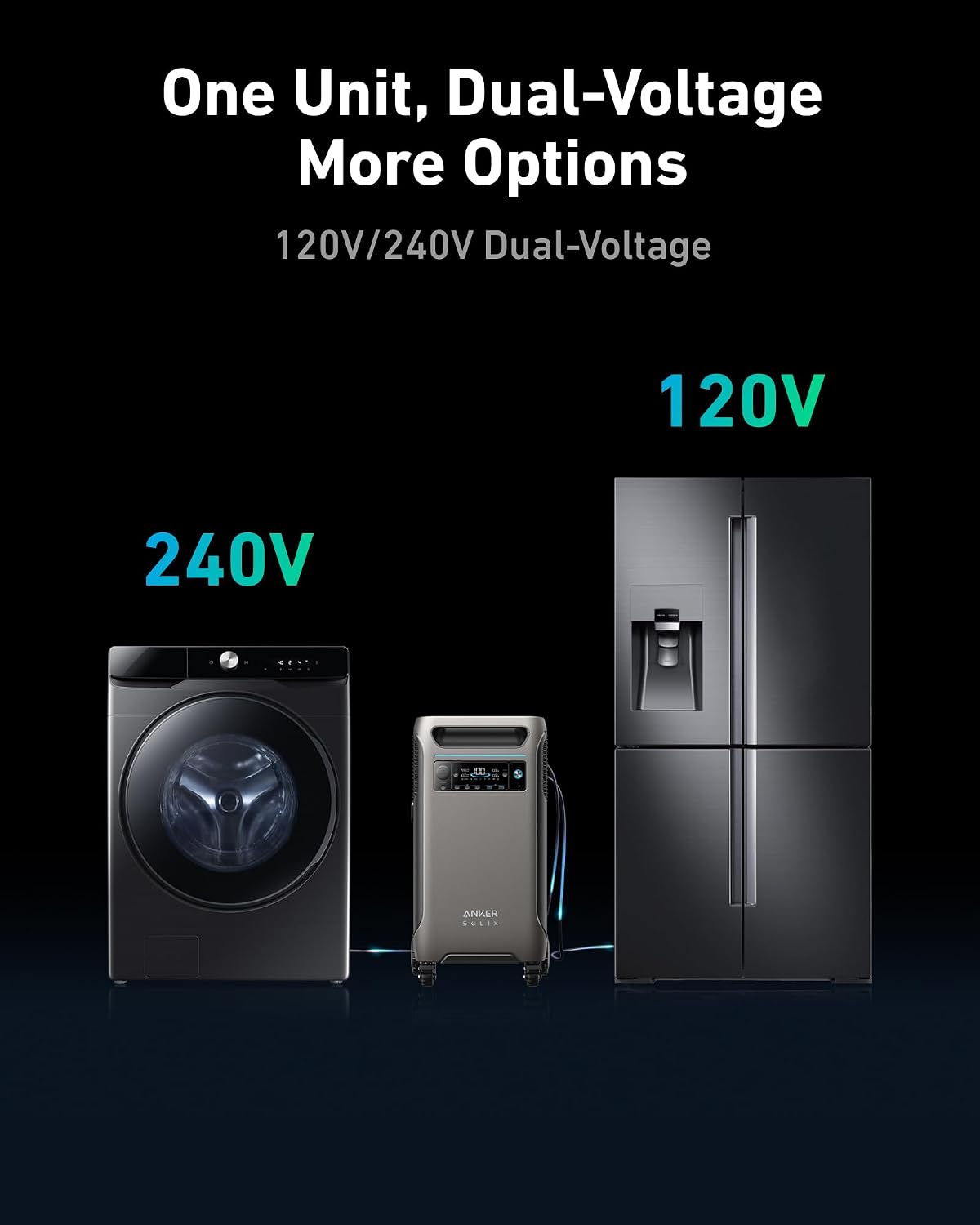

𝗗𝘂𝗮𝗹-𝗩𝗼𝗹𝘁𝗮𝗴𝗲 𝗳𝗼𝗿 𝗔𝗻𝘆 𝗔𝗽𝗽𝗹𝗶𝗮𝗻𝗰𝗲: The 120V/240V and 6,000W AC output runs home appliances. Add another SOLIX F3800 for 12,000W max AC output.

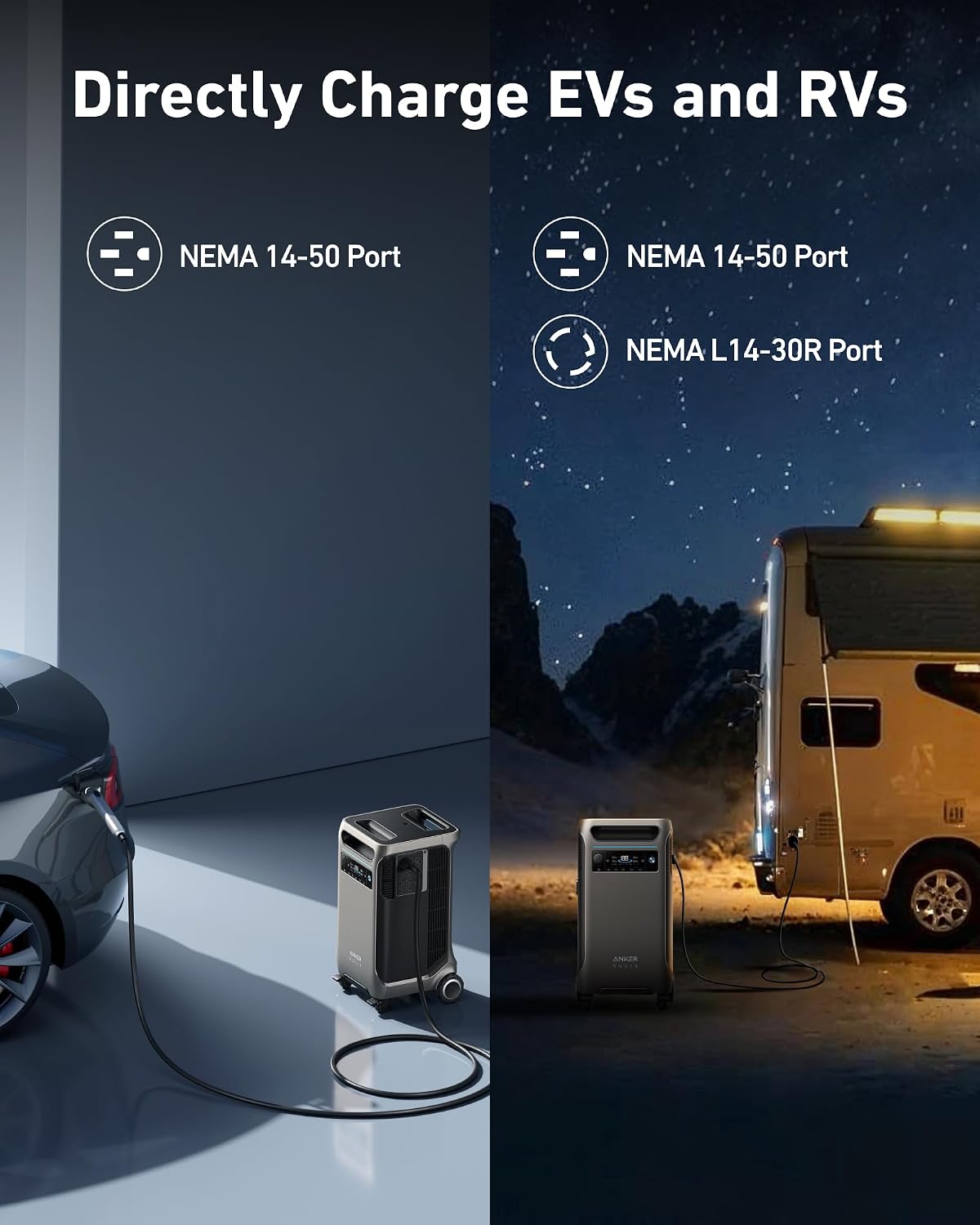

𝗗𝗶𝗿𝗲𝗰𝘁𝗹𝘆 𝗖𝗵𝗮𝗿𝗴𝗲 𝗬𝗼𝘂𝗿 𝗘𝗩: Charge an EV using the EV charging cable and the SOLIX F3800's NEMA 14-50 port at 6,000W.
𝗗𝗶𝗿𝗲𝗰𝘁𝗹𝘆 𝗣𝗼𝘄𝗲𝗿 𝗬𝗼𝘂𝗿 𝗥𝗩: Plug the SOLIX F3800 into an RV's power inlet via the NEMA 14-50 or L14-30 ports to power appliances.
𝟱-𝗬𝗲𝗮𝗿 𝗪𝗮𝗿𝗿𝗮𝗻𝘁𝘆, 𝟭𝟬-𝗬𝗲𝗮𝗿 𝗟𝗶𝗳𝗲𝘀𝗽𝗮𝗻: The SOLIX F3800 is built for a 10-year lifespan with InfiniPower technology, EV-class LFP batteries, durable components, a smart temperature system, and an impact-resistant design. Includes a 5-year manufacturer's warranty.
𝗜𝗻𝘁𝗲𝗹𝗹𝗶𝗴𝗲𝗻𝘁 𝗥𝗲𝗺𝗼𝘁𝗲 𝗖𝗼𝗻𝘁𝗿𝗼𝗹: Connect via Wi-Fi or Bluetooth to monitor power sources and manage settings.

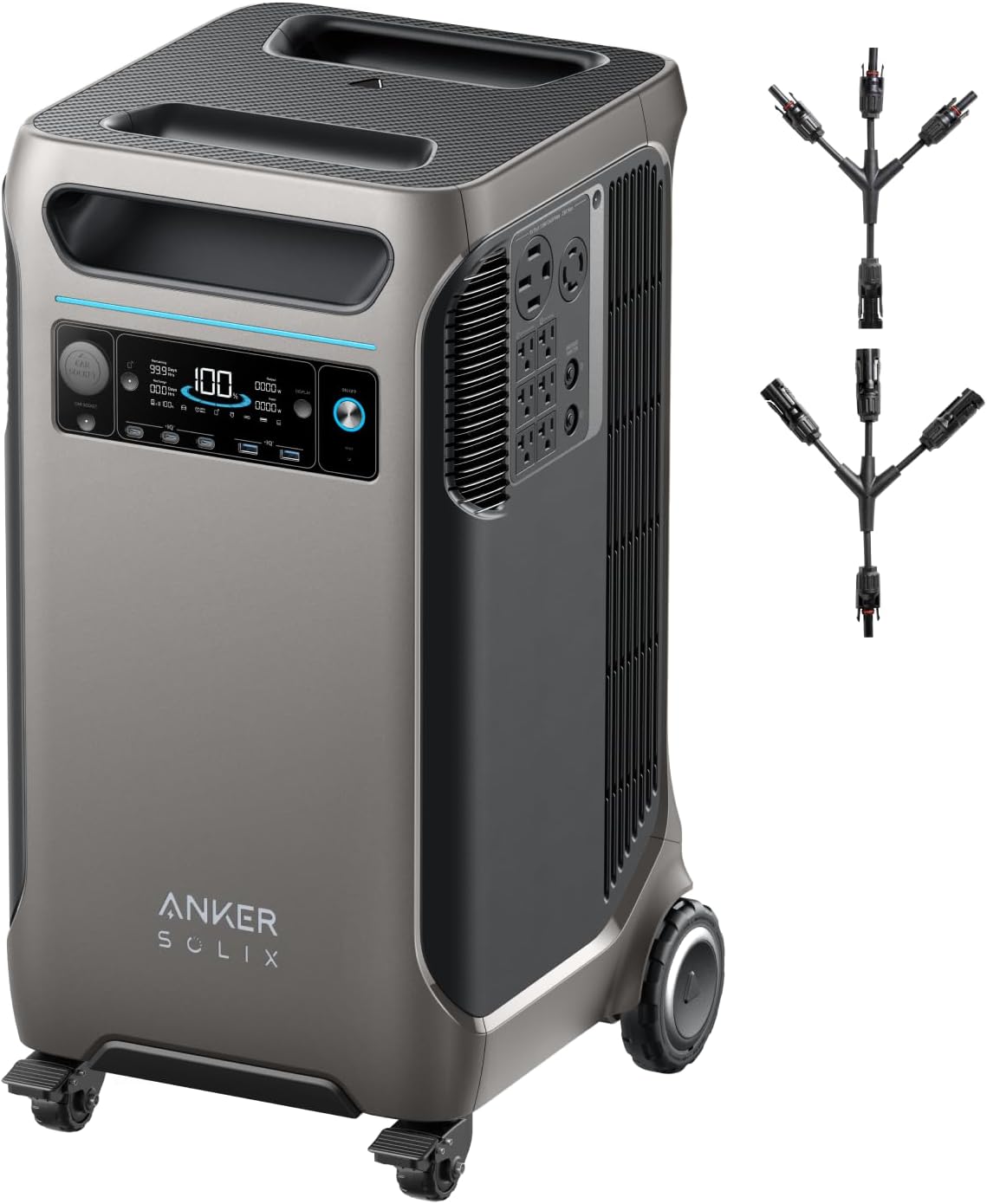

𝗪𝗵𝗮𝘁'𝘀 𝗶𝗻 𝘁𝗵𝗲 𝗕𝗼𝘅: SOLIX F3800 Portable Power Station, AC Charging Cable, Solar to XT60 Charging Cable, MC4 Solar Charging Connector, User Manual

Compatibility

Directly compatible with electric vehicles via the built-in NEMA 14-50 port, as well as RVs equipped with standard NEMA 14-50 or L14-30 power inlets. Expands with up to 6 additional expansion battery packs or connects to home electrical transfer switches.

Warranty

5-year manufacturer's warranty

What's included

SOLIX F3800 Portable Power Station
AC Charging Cable
Solar to XT60 Charging Cable
MC4 Solar Charging Connector
User Manual

Frequently asked questions

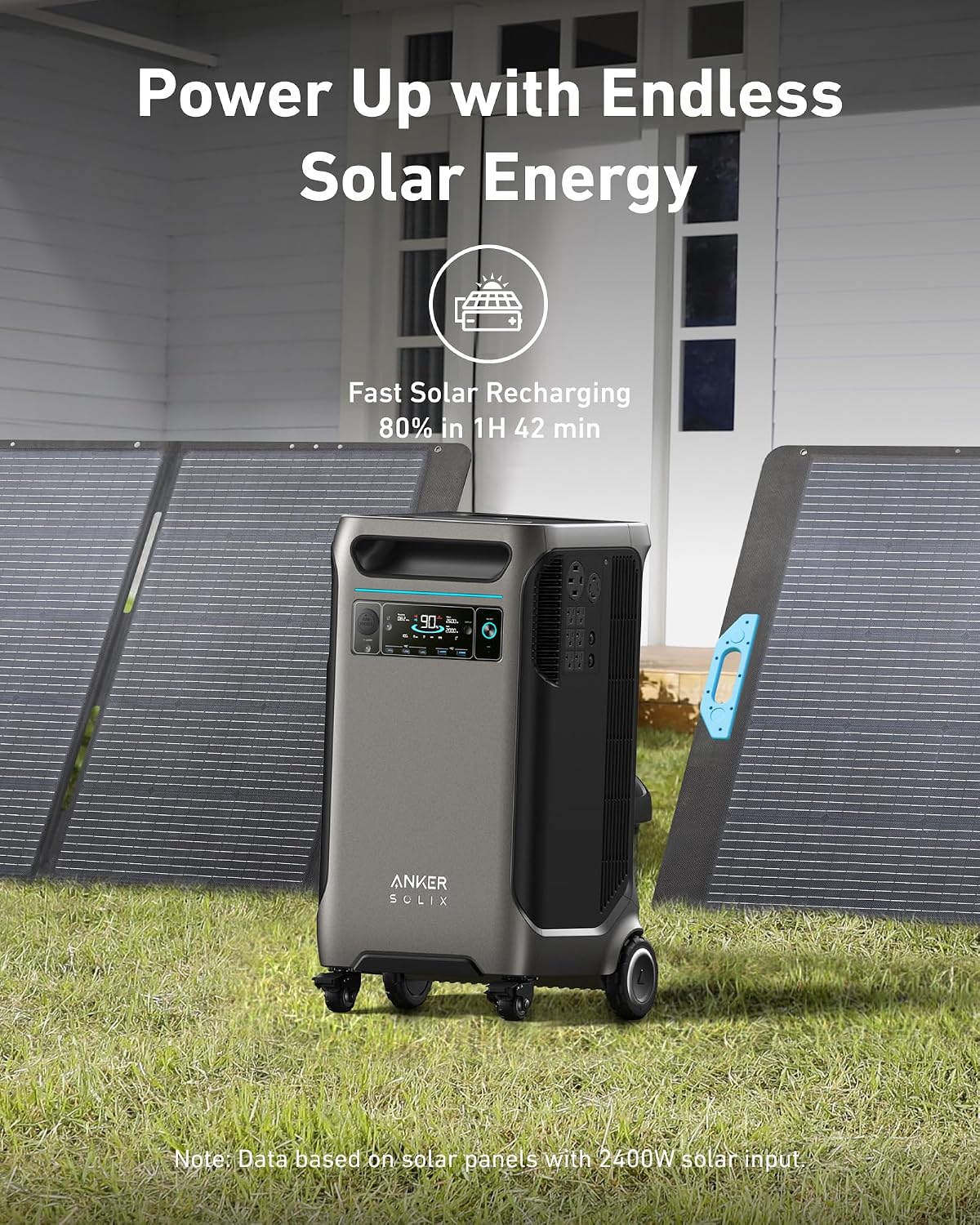

What solar charger specifications are supported by the Anker SOLIX F3800?

The solar input supports an 11-60V solar charger with an XT-60 connector. An 11-15V input supports up to 10A max, while a 15-60V input supports up to 27A max.

What is the maximum open-circuit voltage for solar charging?

The maximum open-circuit voltage for each solar input port is 60V. When connecting panels in series, total voltage must not exceed 60V.

Can the 240V outlet be used while recharging the power station with AC power?

No. When the unit is actively recharging via AC power, only the 120V UPS outlets can be used to power connected devices.

What should be verified when connecting the unit to a home transfer switch?

Ensure that the neutral and ground wires of the inlet box or transfer switch are properly and safely connected before powering through the 240V AC port.
